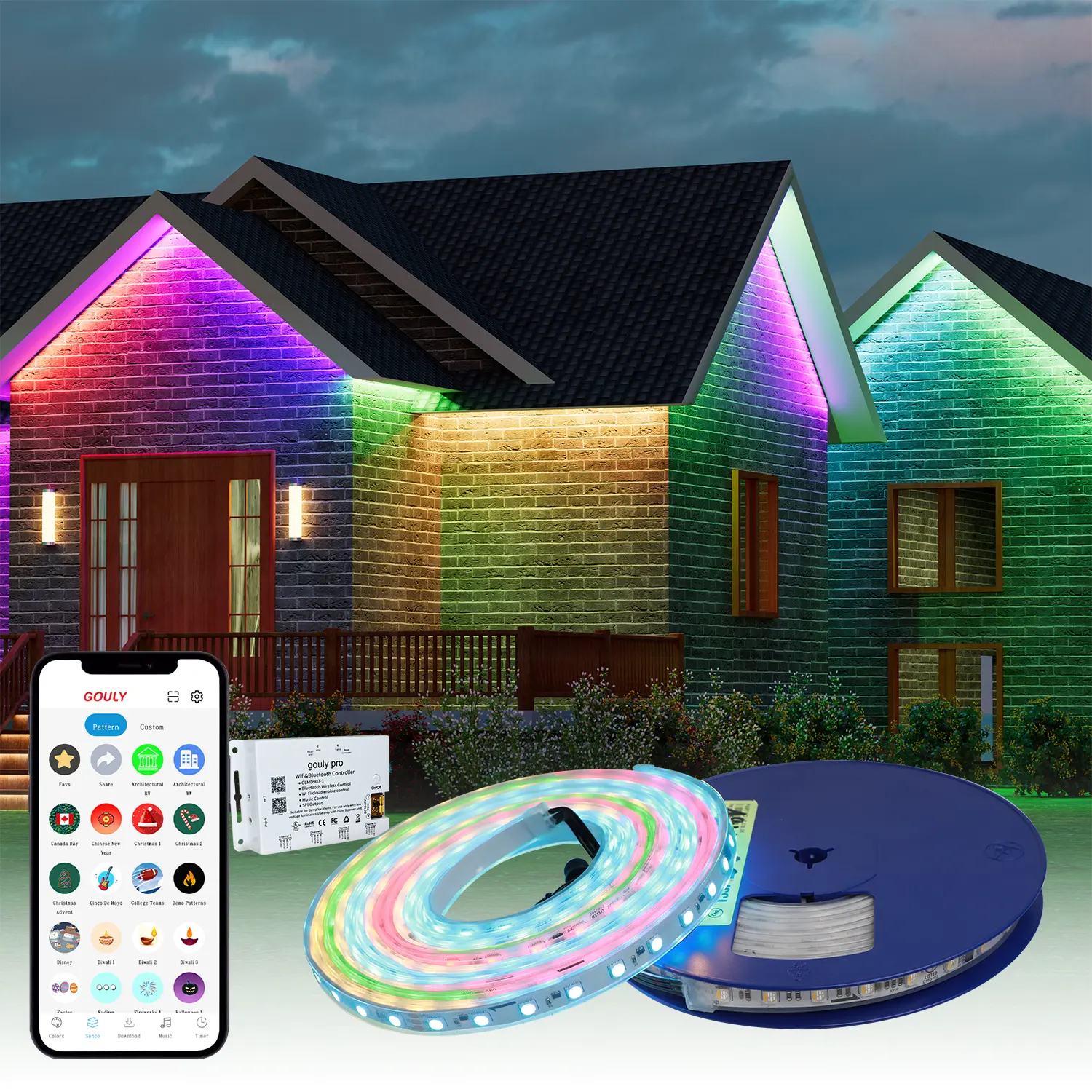

DC48V Smart RGBW Ip68 LED Strip Light

Model NO.: ST5050RGBW-2904-48V
Price:: US $ 5.20-6.20 / meter

Quantity:

Product Description

DC48V SMD5050 RGBW Chasing Color LED Strip Light

Designed specifically for the European market, the ST5050RGBW-2904-48V LED Strip Light combines innovative technology and versatility for home decor, commercial space and architectural lighting scenarios, delivering superior visual effects and reliable performance. Adopting 48V DC low voltage power supply (14W/M), it reduces energy consumption while ensuring high brightness and meets European energy efficiency standards. Equipped with UCS2904 chip, LED strip light supports RGBW four-color dynamic chasing effect, and can realize 16 million colors mixing, gradient, strobe and other modes through the controller to meet the needs of diversified scenes.

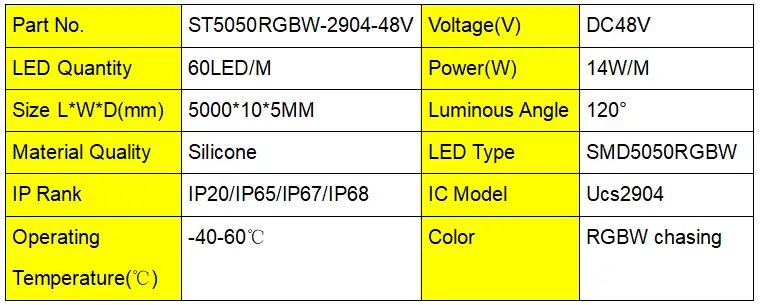

1.LED strip light core parameters and performance advantages:

(1) Voltage and energy efficiency: DC48V safe low-voltage power supply, taking into account the high power output (14W/M), suitable for commercial lighting, long-distance installation and other scenarios, to reduce the voltage drop loss, to ensure uniform and stable brightness.

(2) Wide Angle High Brightness Lighting: 120° wide angle light emission, large light coverage, eliminating dark areas, suitable for indoor and outdoor scenes that require uniform light distribution.

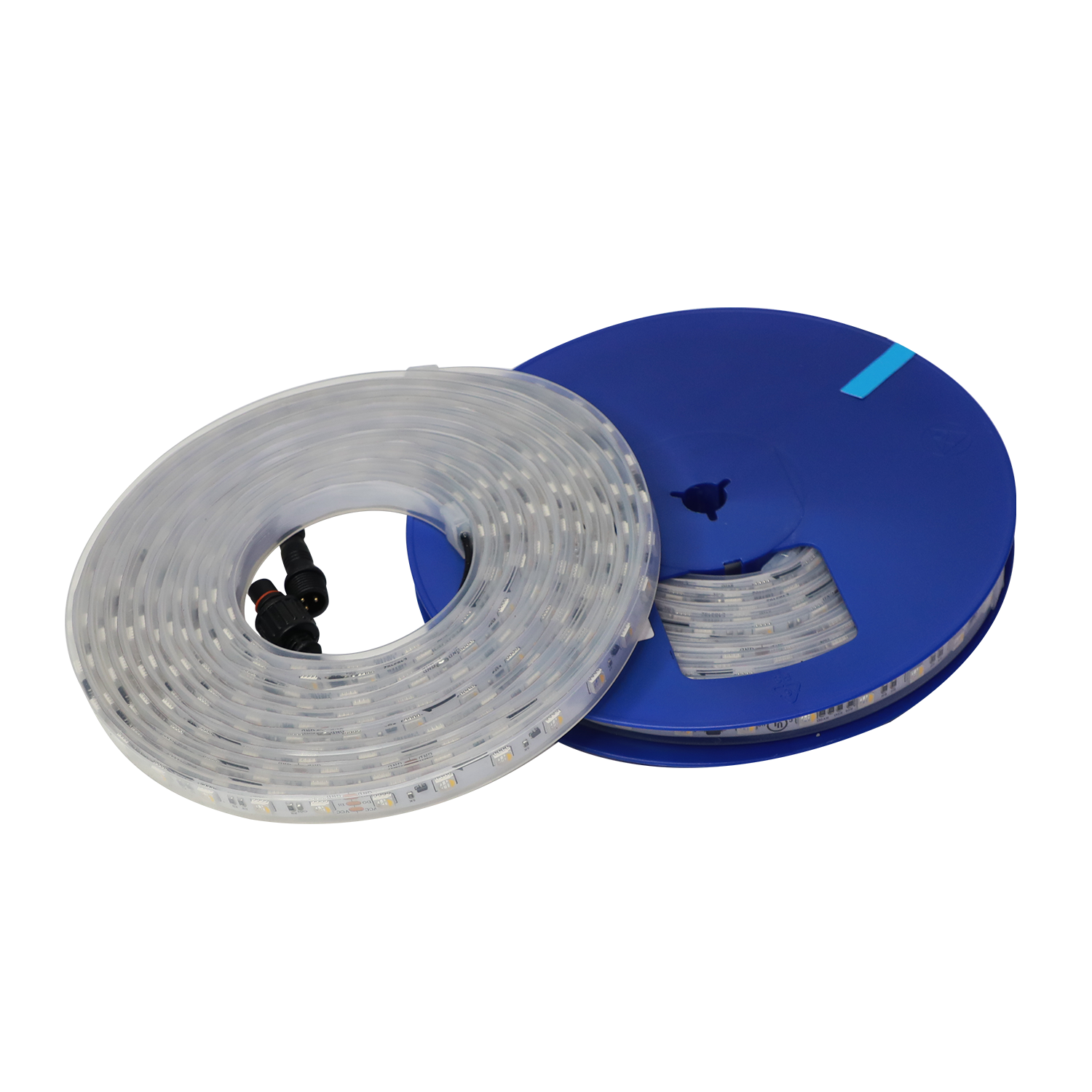

waterproof led strip lights waterproof led lights

2. LED strip lighttechnology configuration:

(1) SMD5050RGBW: single integrated RGB+ white light chip, color rendering index (CRI) ≥ 80, full and delicate color, this LED strip light can switch dynamic light effects.

(2) High-density layout: 60 LED/m, LED strip light cut to maintain circuit integrity, user-defined length.

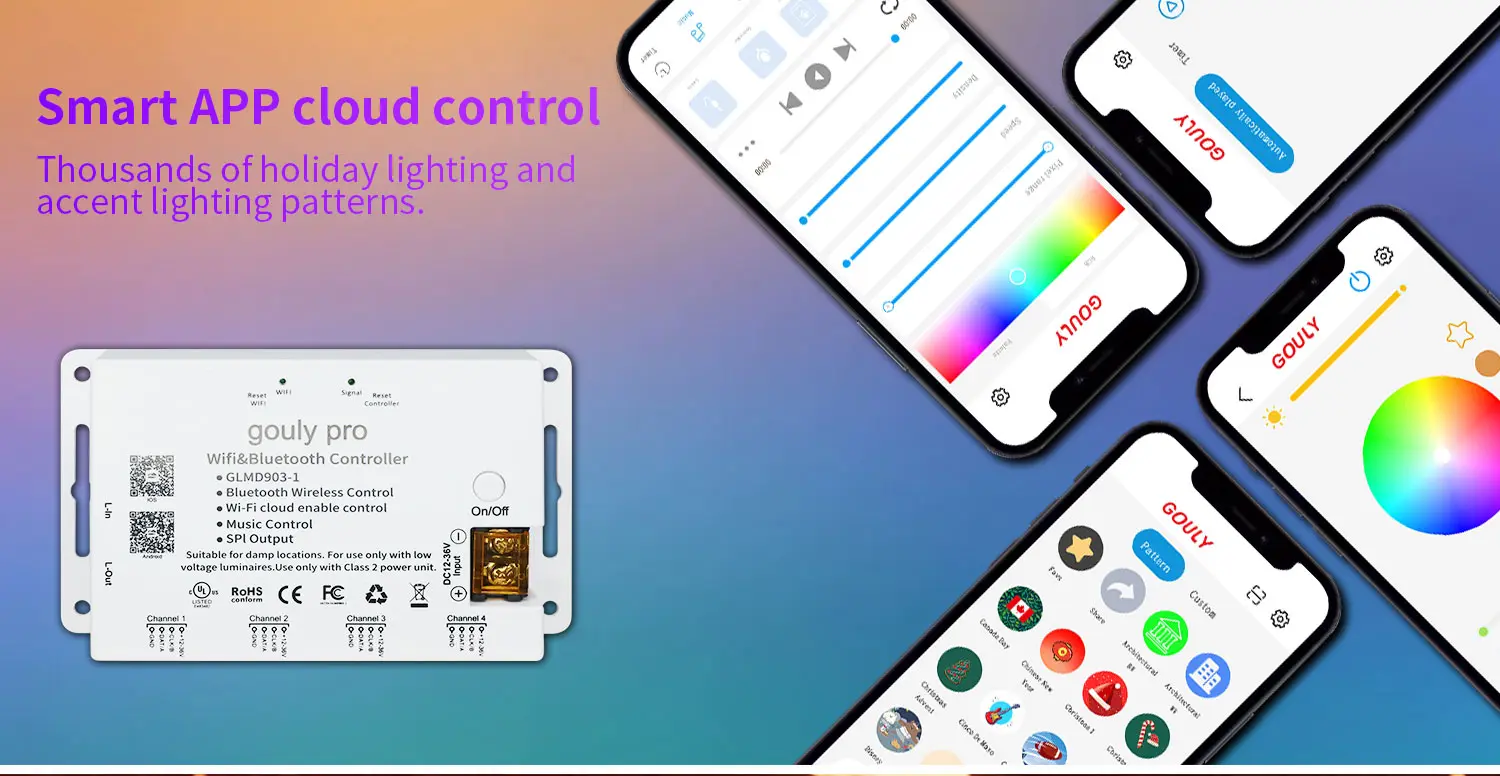

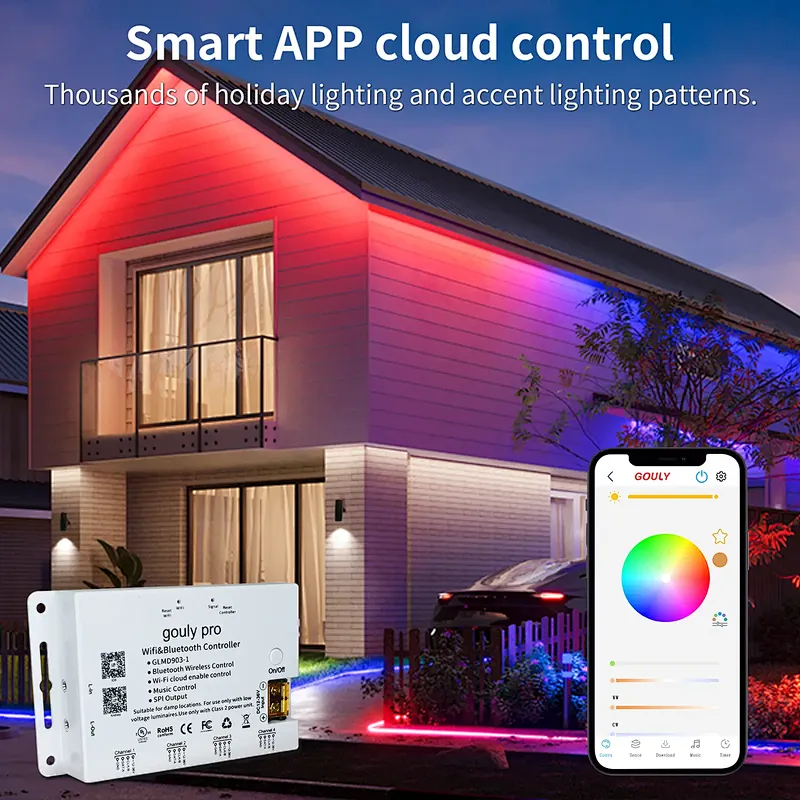

(3) Intelligent control chip: LED strip light is equipped with UCS2904 driver chip, supporting dimming and independent addressing, fast response speed, accurate color programming and dynamic scene switching via controller or APP.

led light strips for room

3. LED strip light structure and durability design：

(1) Ultra-thin and compact: 5000mm (L) x 10mm (W) x 5mm (Th), LED strip light is suitable for curved or shaped wall structures.

(2) Strong environmental adaptability:

1. Wide temperature range operation: -40 ℃ to 60 ℃ stable operation at extreme temperatures; storage temperature -30 ℃ to 50 ℃ to avoid performance damage during transportation.

2. Provide multi-level protection customization such as:

IP20: Basic dustproof, suitable for dry rooms.

IP65/IP67: anti-splash and short time immersion, suitable for outdoor billboards and courtyard landscaping.

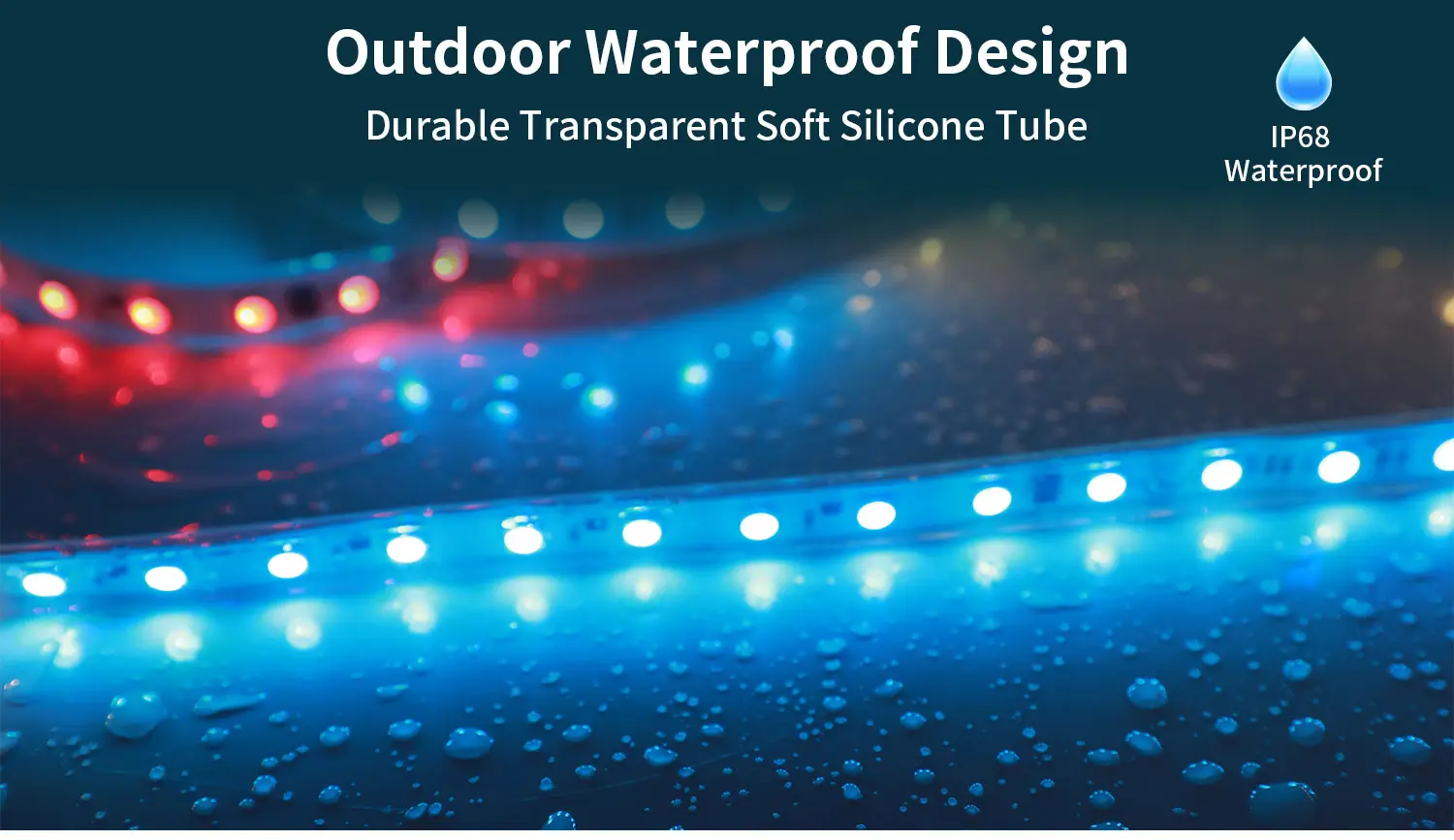

IP68: Fully waterproof (the whole LED strip lightcan be continuously submerged underwater for 1 meter), can be used for swimming pool and water feature facilities.

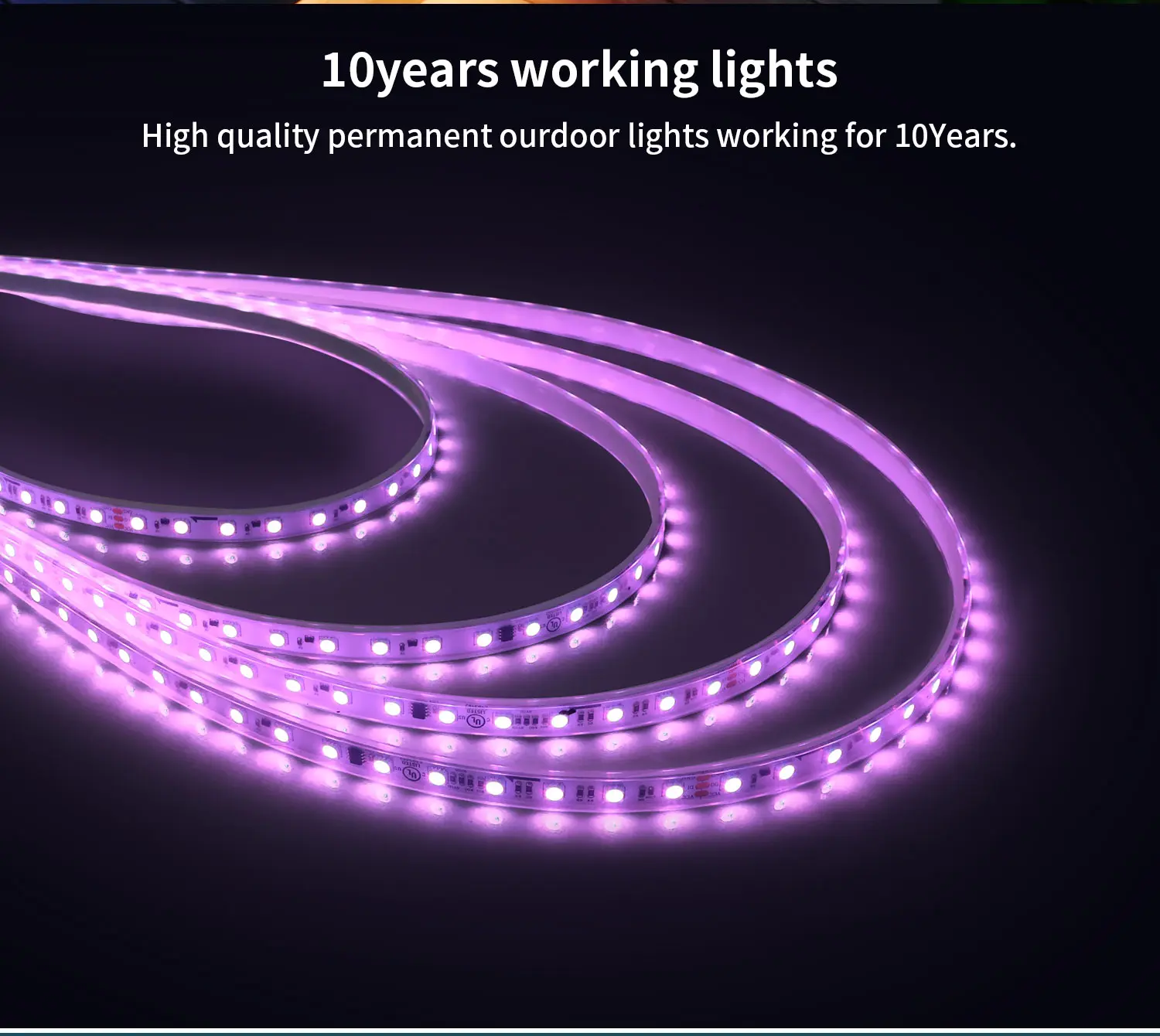

dimmable led strip lights

4. LED strip light application scenes and added value:

(1) Commercial and home: dynamic light show in shopping mall windows, bar stage atmosphere creation, Scandinavian minimalist interior decoration, Christmas theme lighting fixtures.

(2) Industrial and public facilities: Warehouse ceiling lighting (low-voltage safety), low-temperature cold storage lighting (-40 ℃ cold resistance).

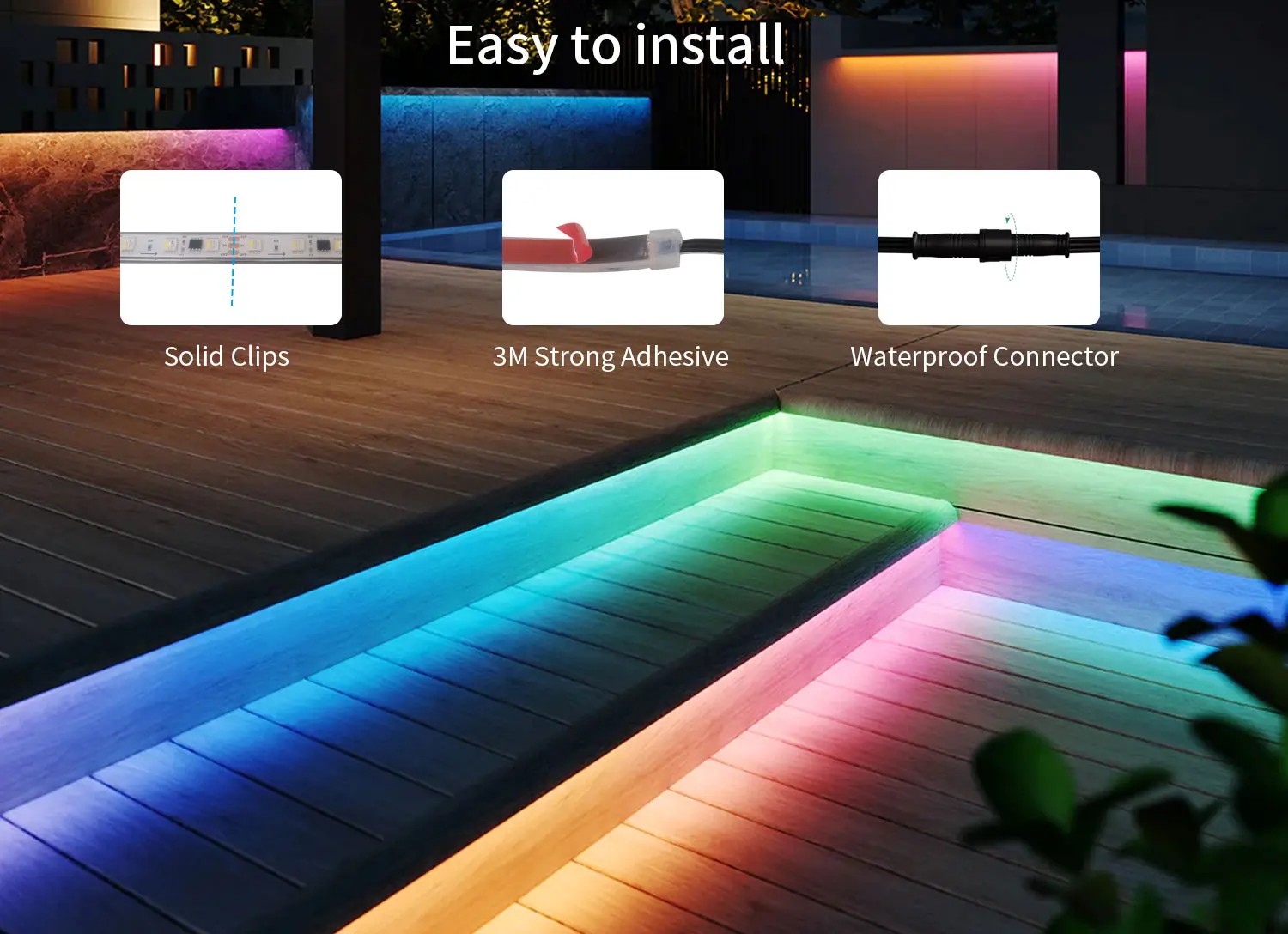

(3) Installation: 3M adhesive backed fixing, support serial expansion.

(4) Low failure rate design, LED strip light average lifespan ≥ 50,000 hours.

led strip lights with remote dimmable led strip

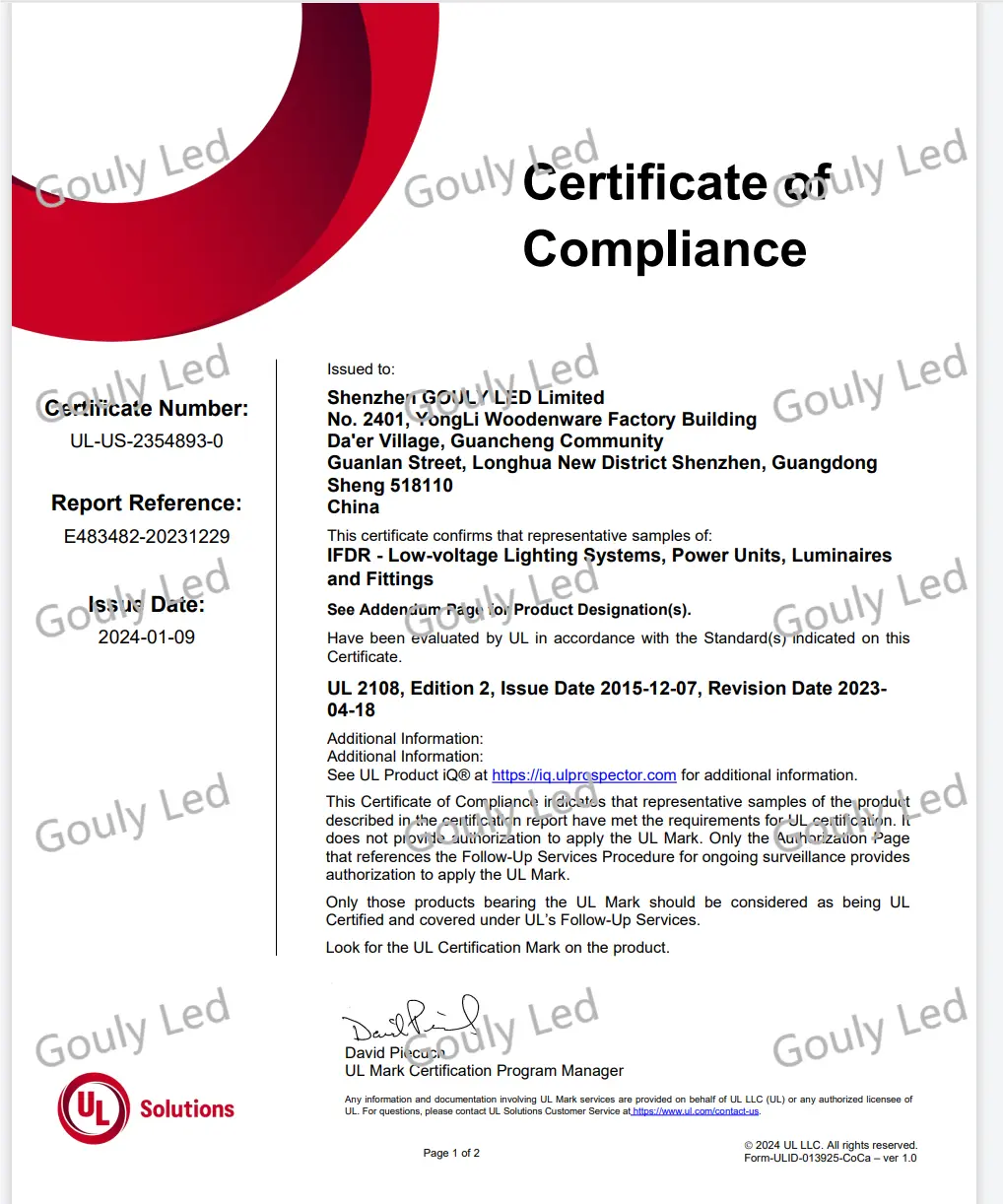

5. LED strip light compliance and certification:

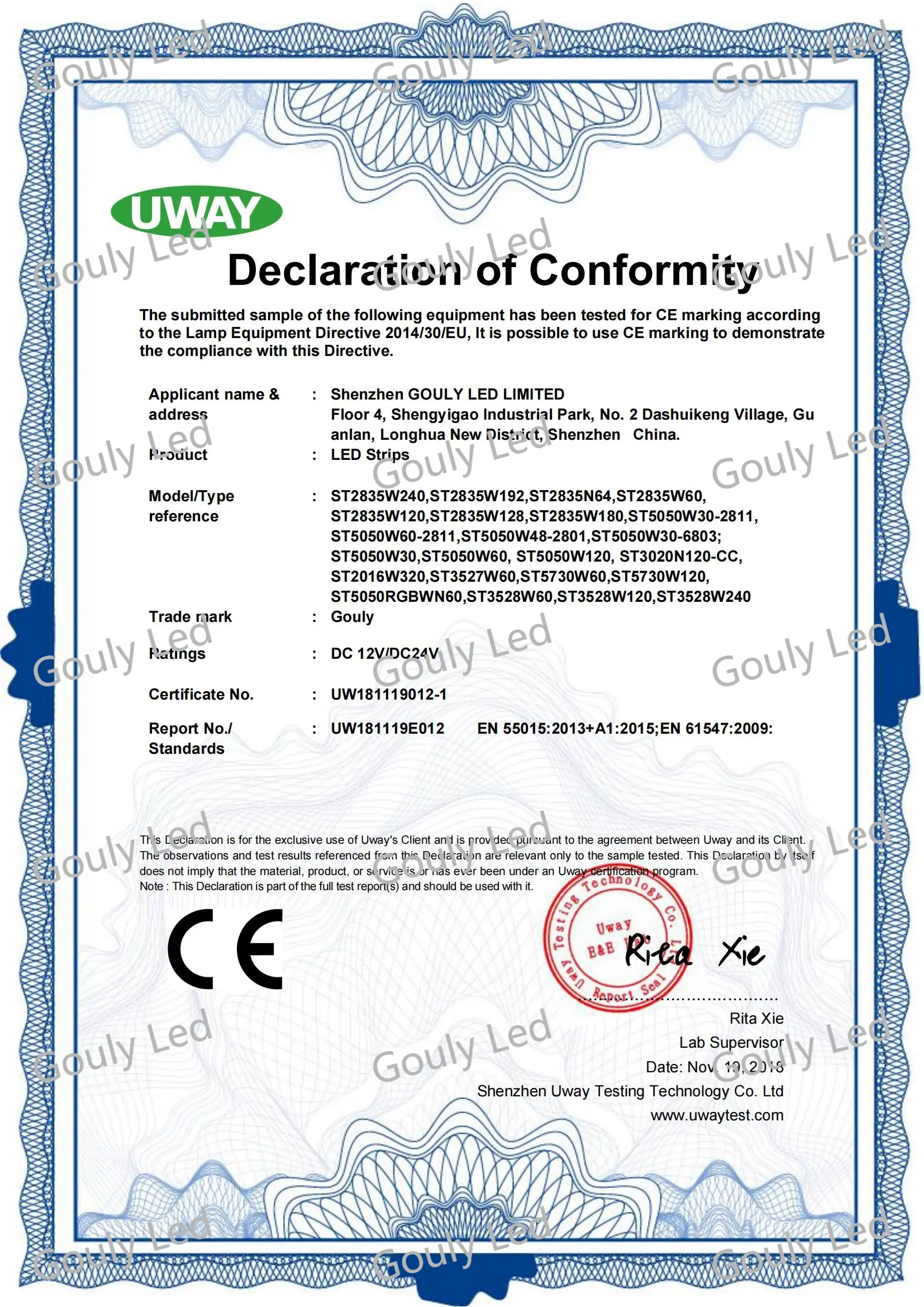

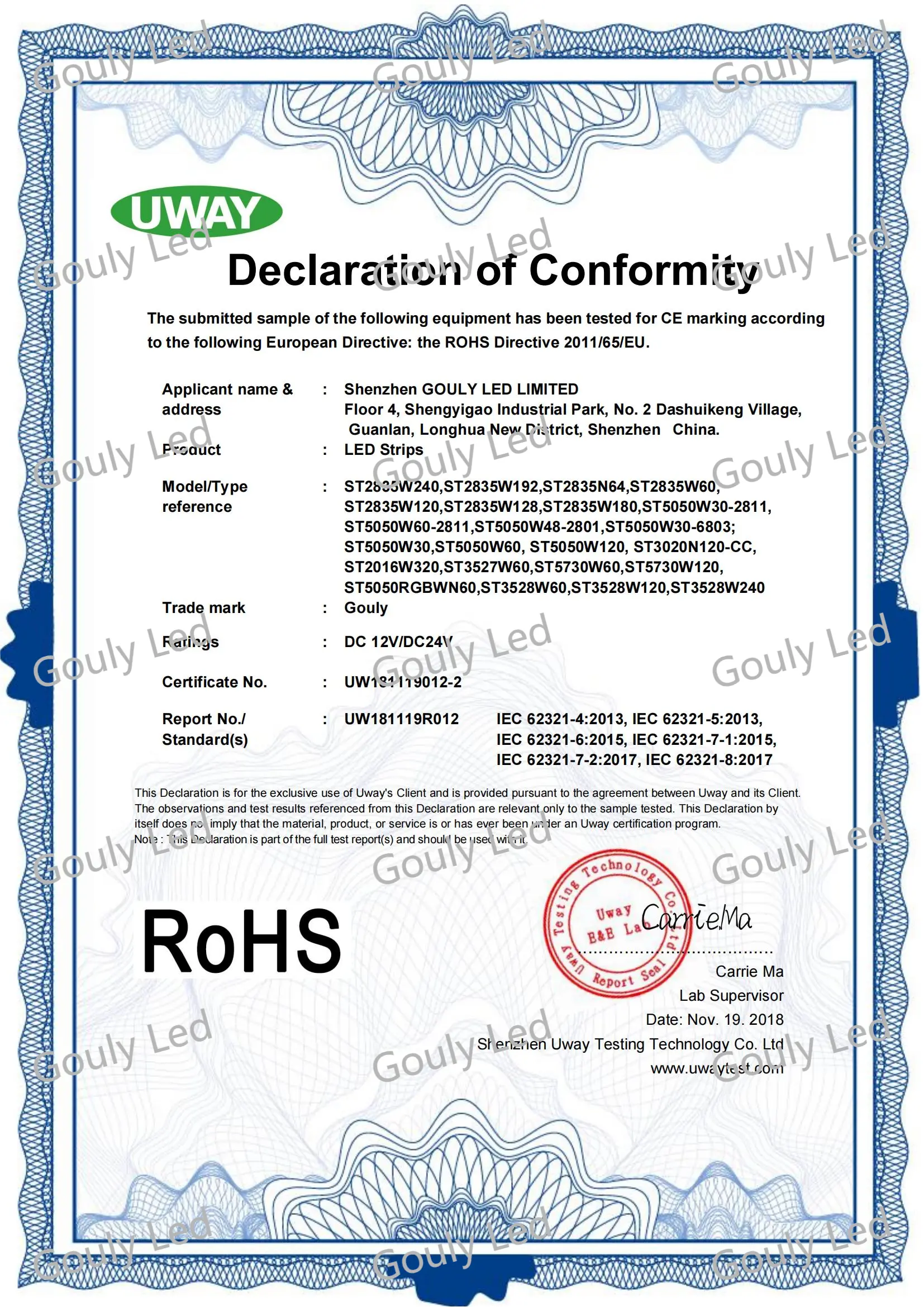

(1) Comply with EU CE, RoHS, ERP energy efficiency standards.

(2) Provide customized service, support OEM/ODM.

6.Installation Precautions：

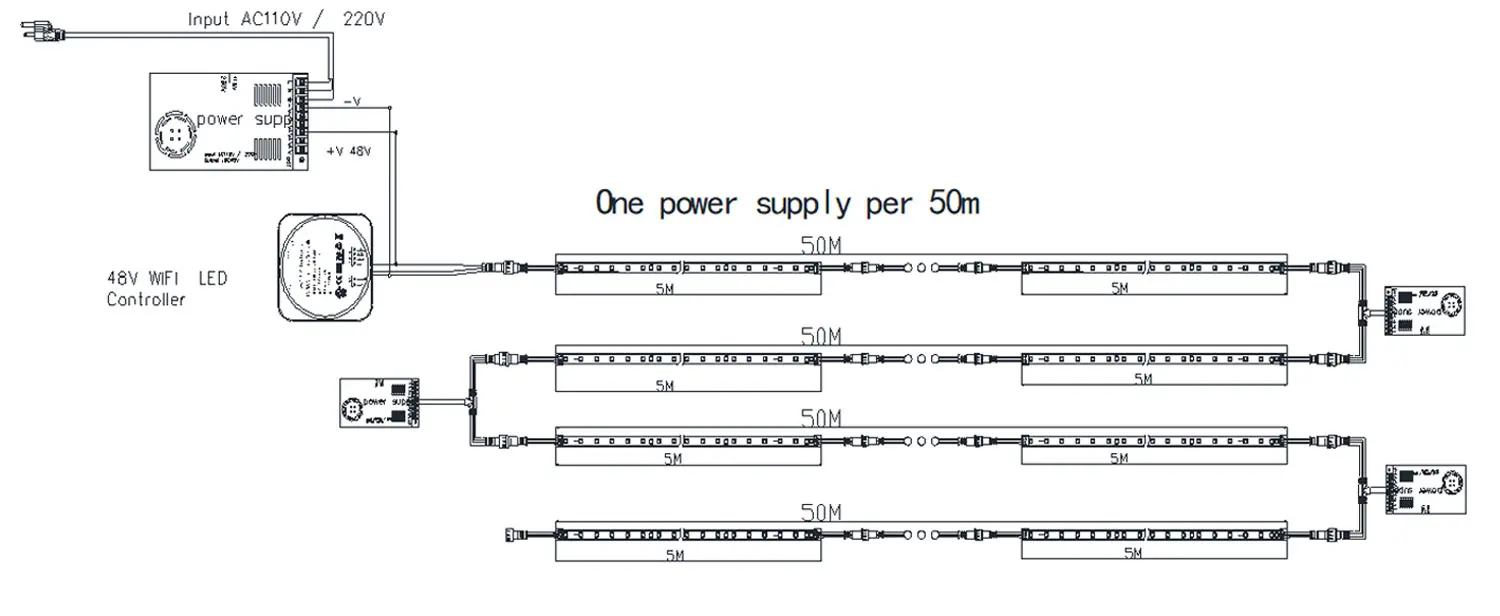

1. Connection schematic shown in the above figure, single-direction signal transmission distance is recommended ≤ 5 meters, longer installations need to increase the signal amplifier.

2. Selection of power supply: Use matched 48V constant voltage power supply to avoid damage caused by over-voltage or under-voltage. Under normal circumstances, the balance should be maintained at 30%, and the power supply needs to be segmented when multiple volumes are connected in parallel to avoid line overload.

3. Positive and negative poles must be connected correctly, reversing them may cause the strip or controller to burn out.

4. Always disconnect the power supply when installing, cutting or servicing.

5. The operating area must be kept away from high temperatures. High-density installations (e.g., enclosed light troughs) need to reserve space for heat dissipation to avoid prolonged full-load operation.
