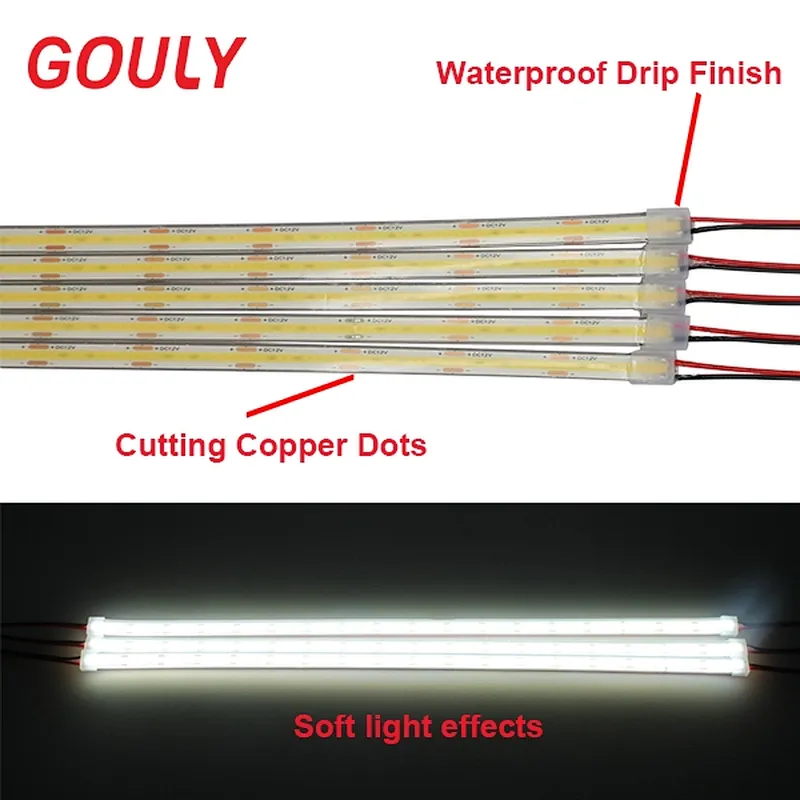

Customized High Brightness Monochrome COB LED Strip Light

Customized High Brightness Monochrome COB LED Strip Light

Model NO.: GLCOB
Price:: US $ 1.50-7.20 / meter

Quantity:

Product Description

Customized COB LED Strip Light

This series of COB LEDstrip light with “high brightness, high color rendering, high flexibility, high compatibility” as the core, covering from basic decoration to professional commercial lighting scene, combined with the European and American market for energy efficiency, safety and intelligent demand, through modular design + depth customization capabilities to help customers create differentiated lighting solutions.

1. Full Series Of Common Advantages - To Meet The Core Needs Of Europe And The United States

(1) High brightness and high efficiency, long life design:

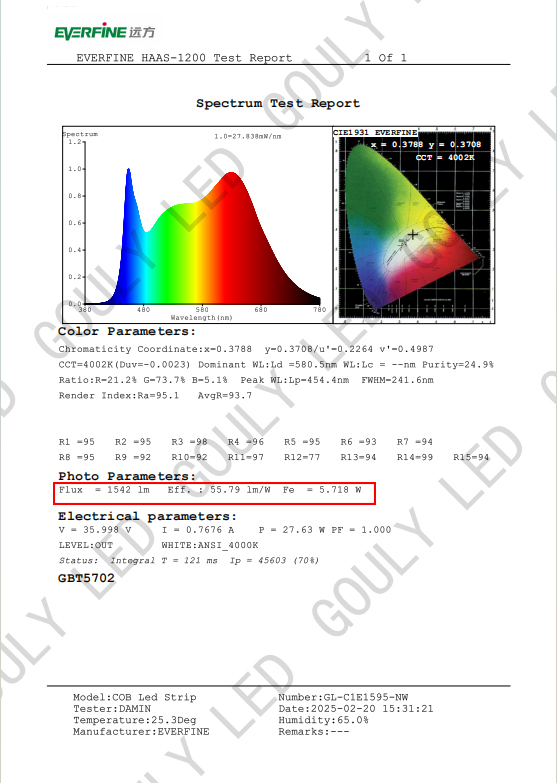

The brightness of our COBLEDstrip light can significantly exceed that of traditional SMD strips and common COBLEDstrip light from our peers. For example, a brightness output of 1500+lm can easily meet the demand for high illumination, and the light is evenly distributed, avoiding the problem of light spots or dark areas. By integrating multiple LED chips in high density on the same substrate to form a large uniform light emitting surface, the light efficiency is higher. Under the same power, this high-density arrangement of COBLEDstrip light also reduces light loss, further improving energy efficiency.

(2) Flexible protection level customization:

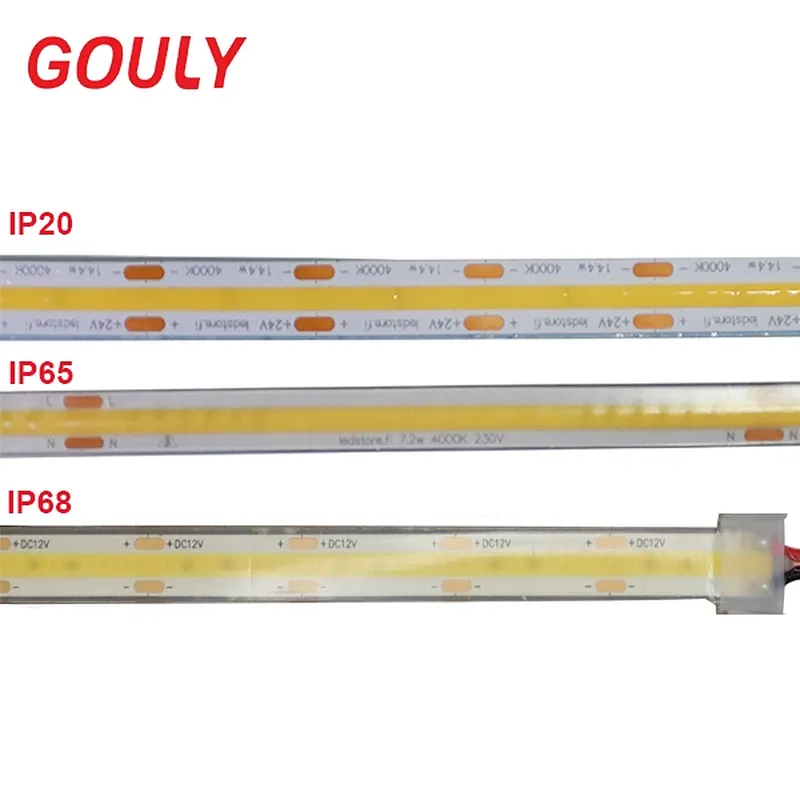

IP20/IP67/IP68 can be selected to adapt to diverse scenes, IP20 is suitable for dry indoor, IP67/IP68 is suitable for wet or harsh environments such as bathrooms, outdoor, etc..

(3)High color rendering, professional grade lighting:

CIR≥90RA, accurately restore the true color of the object, COB LED strip light meets the stringent requirements for high-quality light sources in commercial, home and art spaces in Europe and the United States.

(4) International certification and safety:

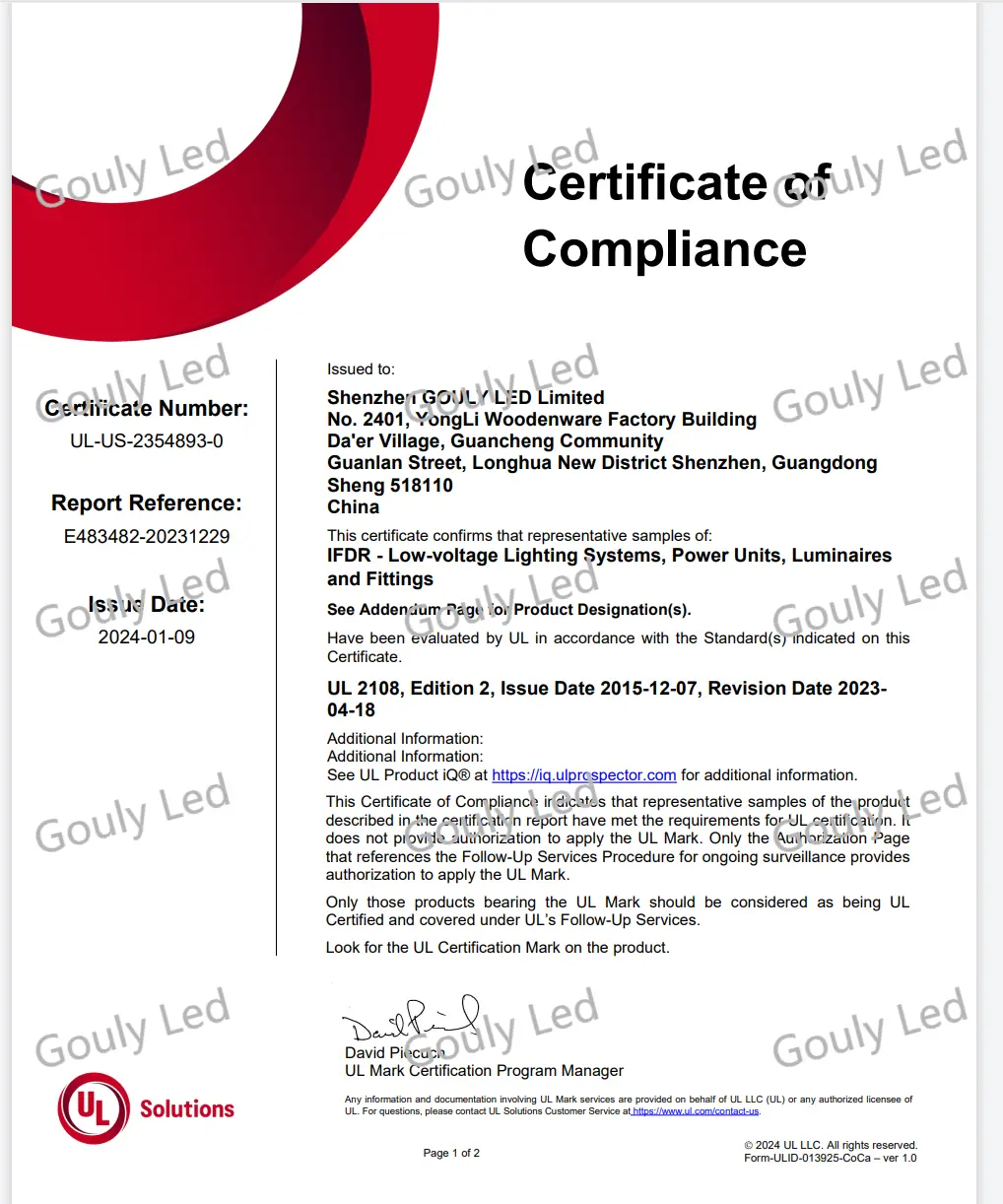

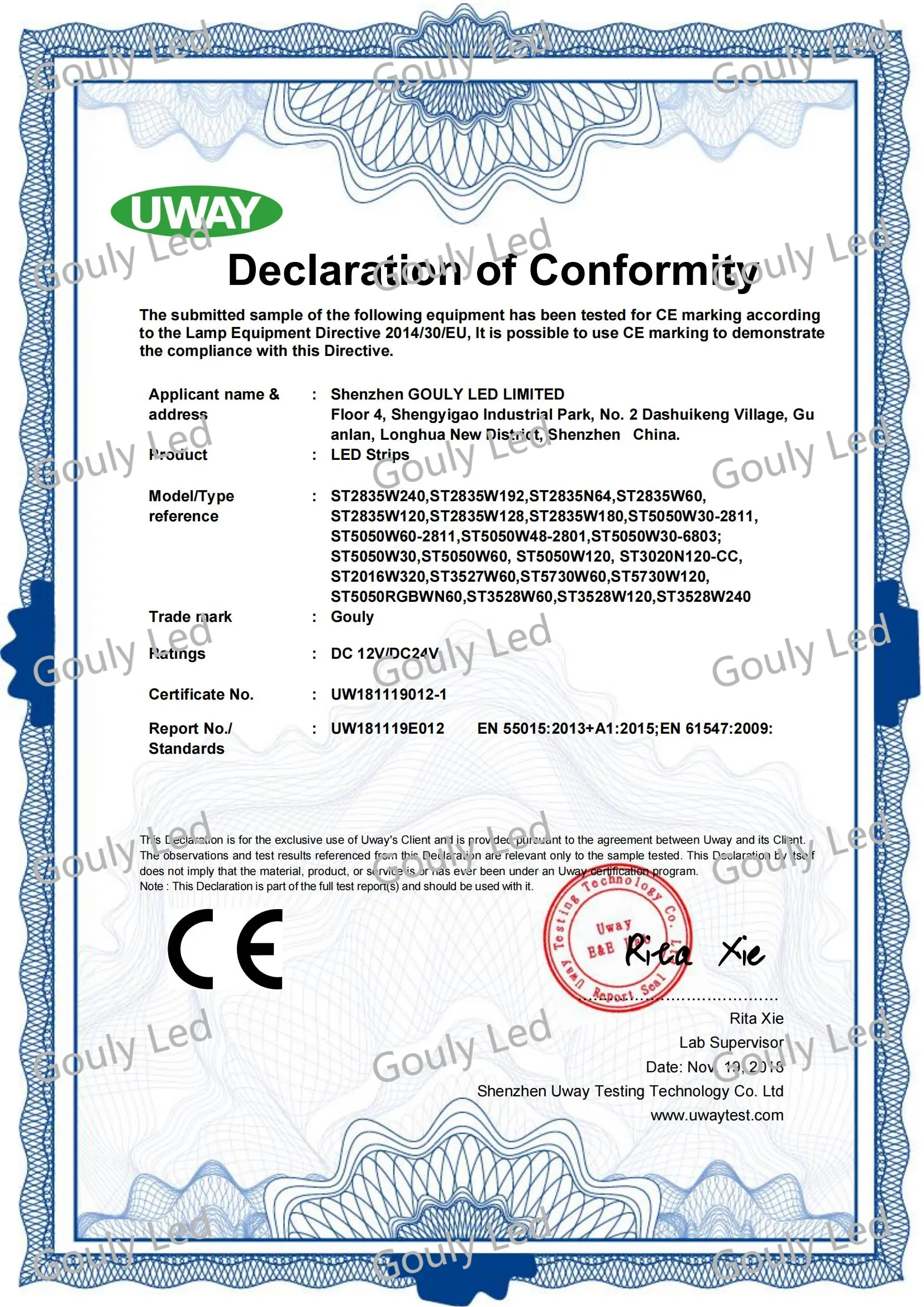

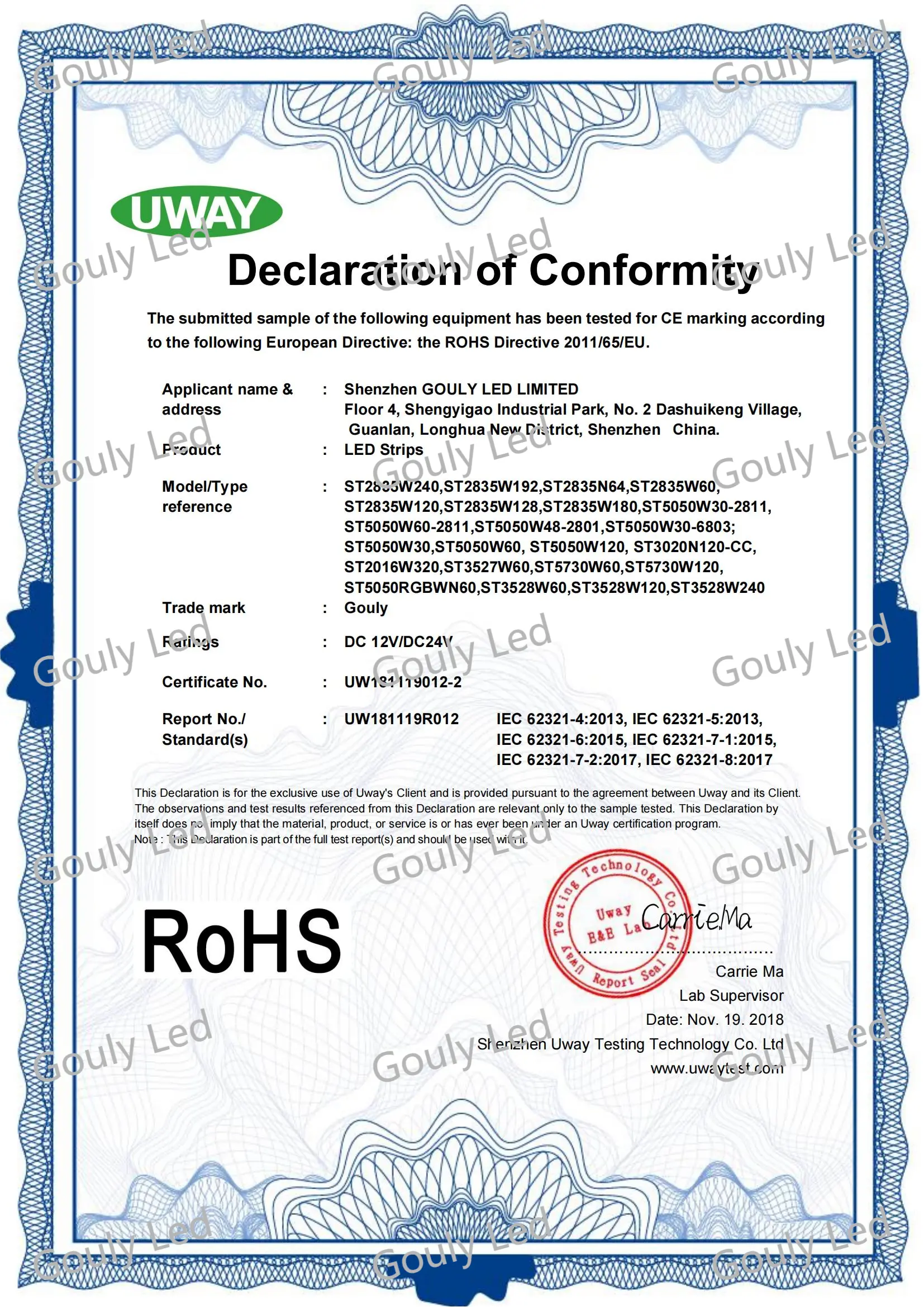

Comply with CE/RoHS/FCC and other European and American access standards, support customized UL certification to ensure electrical safety and environmental compliance.

2. Model Differentiation Advantage - Accurate Matching Of Segmented Scenes

(1) Basic and high density COB LED strip light:

1.GLCOB-320 (8W/M, 700-800LM): economic entry, low power cost-effective, suitable for auxiliary lighting (cabinets, display cabinets) or small space decoration.

2.GLCOB-480/GLCOB-528(11W-14W/M,900-1400LM): high brightness commercial grade, 480-528pcs/M in dense rows, luminous flux up to 1400LM, covering retail stores, office lighting and other high-demand scenarios, 10mm wide PCB to enhance thermal stability.

(2) Ultra-narrow PCB design:

GLCOB-384: 5mm ultra-thin, can be hidden in furniture crevices or curved surface installation, to create a seamless linear light effect, suitable for high-end minimalist design trend.

(3) Low voltage 5V power supply:

GLCOB-480: USB/battery compatible,directly adapted to 5V power supply, to meet the DIY lighting, portable camping lights and other creative application scenarios.

(4) Dual color temperature light mixing:

GLCOB-840/GLCOB-608: 2700K+6500K dual color temperature, support dynamic adjustment of cold and warm light, one key to switch the atmosphere (warm/focused), suitable for hotels, smart home scenarios, with grouping control (20 groups) to achieve segmented dimming.

3. Installation And Use Advantages - Simplify The Cost Of The Project

(1) Precision cutting design:

The minimum cutting length of COB LED strip light is 20.8mm (GLCOB-384), other models support 25-50mm flexible cutting, reducing material waste and adapting to complex wiring requirements.

(2) Dual voltage compatibility (12V/24V):

Models 1-4 of COB LED strip light support automatic voltage adaptation, simplifying power supply selection and reducing inventory pressure.

(3) Group control (20-48 groups/M):

Multi-independent circuit design, support dynamic effect programming, enhance the visual appeal of commercial space.

4.COB LED Strip Light Customization Service And Added Value

(1) Customized length/color temperature: Provide WW (Warm White)/PW (Positive White)/CW (Cool White) and dual color temperature mixing options, support OEM/ODM.

(2) After-sales: provide 3-5 years warranty.

5.COB LED Strip Light Installation Precautions

(1) COB LED strip light before installation:

1. 5V/12V/24V power supply needs to be strictly differentiated to avoid over-voltage burnout caused by mixing.

2.IP20 model: indoor dry environment only, avoid humid areas.

3.IP67/IP68 model: Check the integrity of the waterproof COB LED strip light before installation, and use waterproof adhesive to seal the joints.

4.High-power models of the COB LED strip light need to be installed in metal channels, aluminum substrates or well-ventilated locations to avoid overheating caused by confined spaces.

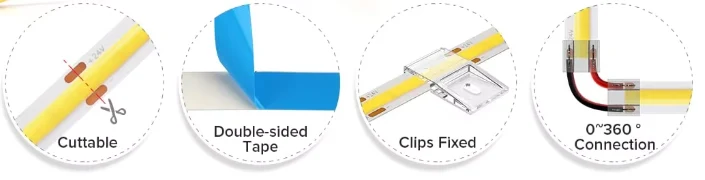

(2) Installation operation specification:

1.All models of COB LED strip light need to be cut at the designated cutting point under the knife, and prohibit arbitrary cut-off leading to damage to the group circuit.

2.Narrow PCB models (e.g. 5mm) use flexible adhesive backing or 3M tape to fix the COB LED strip light to avoid deformation of PCB caused by mechanical extrusion. Wide PCB models (e.g. 10mm) are installed with aluminum slots or clips to enhance heat dissipation and tensile strength.

3. After installing the COB LED strip light, use silicone to seal the cutouts and connectors at both ends, and pass the 24-hour water immersion test (IP68 only).
