DC24V Smart Addressable Color Changing COB RGB LED Strip Light

DC24V Smart Addressable Color Changing COB RGB LED Strip Light

Model NO.: GLCOBRGB
Price:: US $ 4.20-7.20 / meter

Quantity:

Product Description

Customized Waterproof SmartControlDC24V COB RGB LEDStripLight

Intelligent flexible COB RGB LED strip light, DC24V safety voltage, support RGB full color gradient, can be controlled remotely via APP (compatible with Alexa/Google Home), equipped with self-developed controller, support customization. Resistant to high and low temperatures (-40℃~60℃), 180° wide angle shadowless light effect, RA90 high color rendering, life expectancy over 50,000 hours. Can be freely cut and spliced, provide 3 density options of 672/720/840 leds/m, suitable for IP20(indoor),IP67/68 (outdoor waterproof) scenes, CE/UL certified,3-year warranty, suitable for commercial exhibitions and displays, home decoration and outdoor lighting projects.

1.Intelligent Control

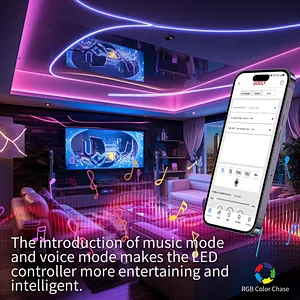

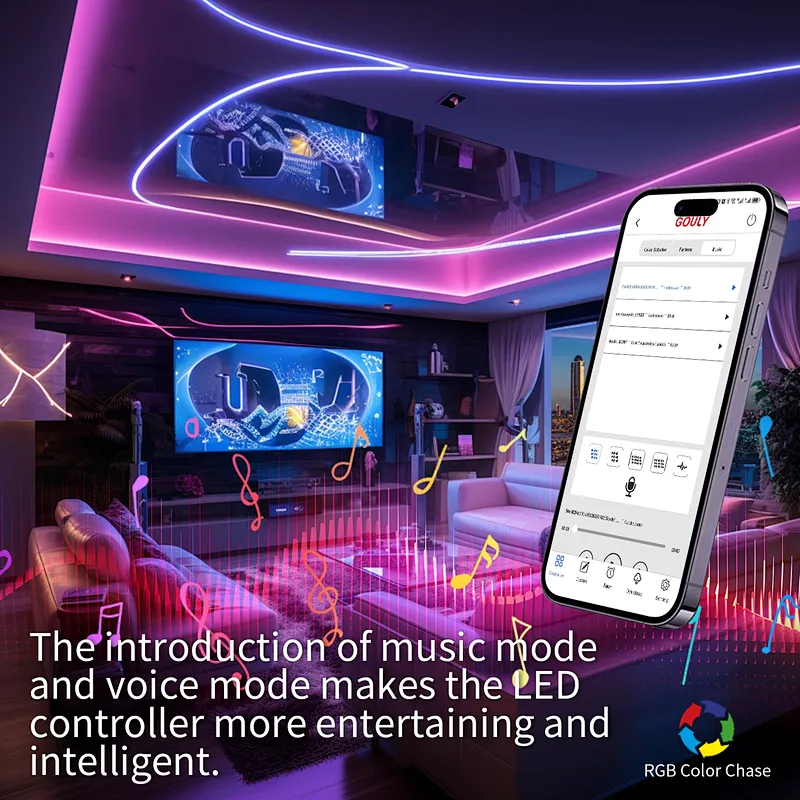

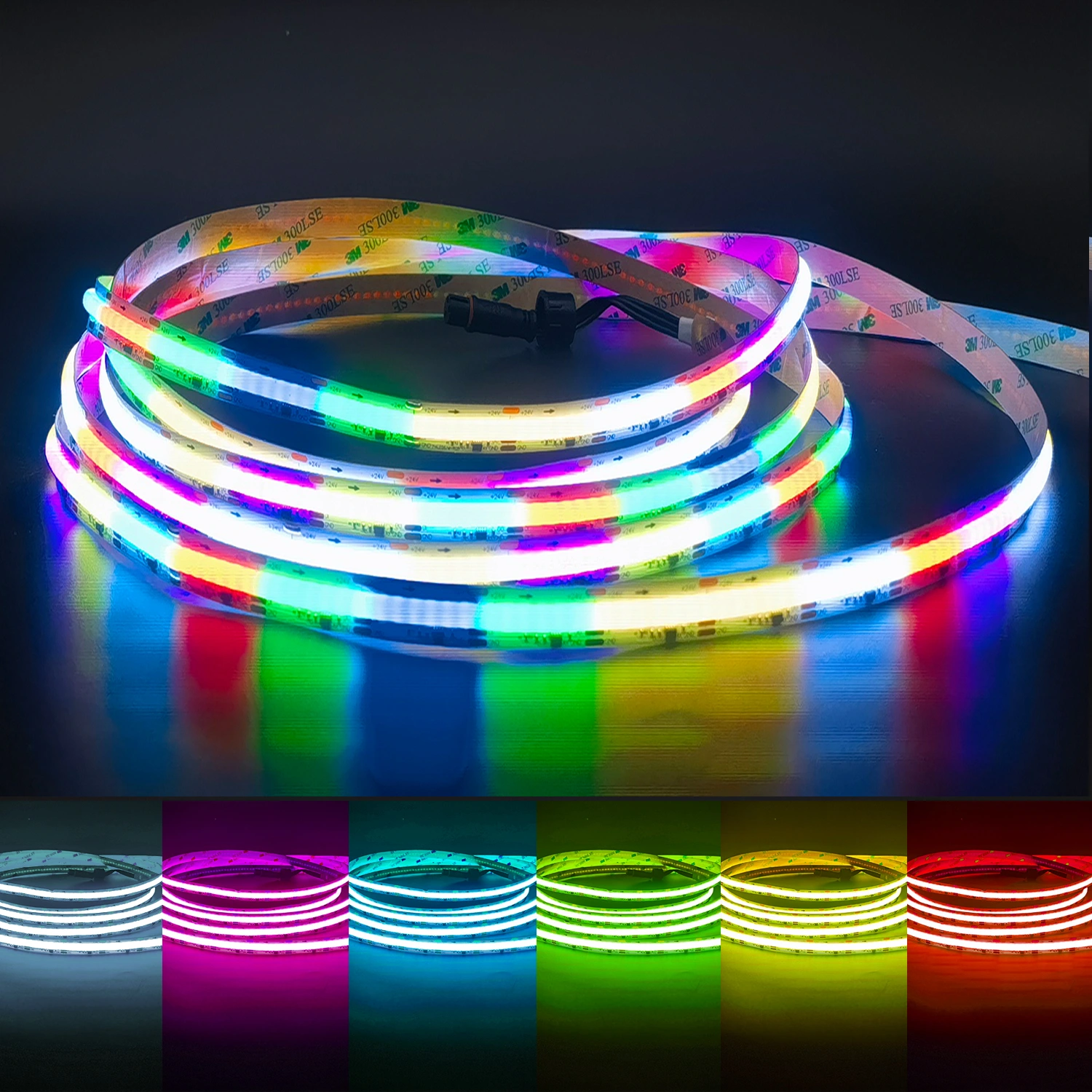

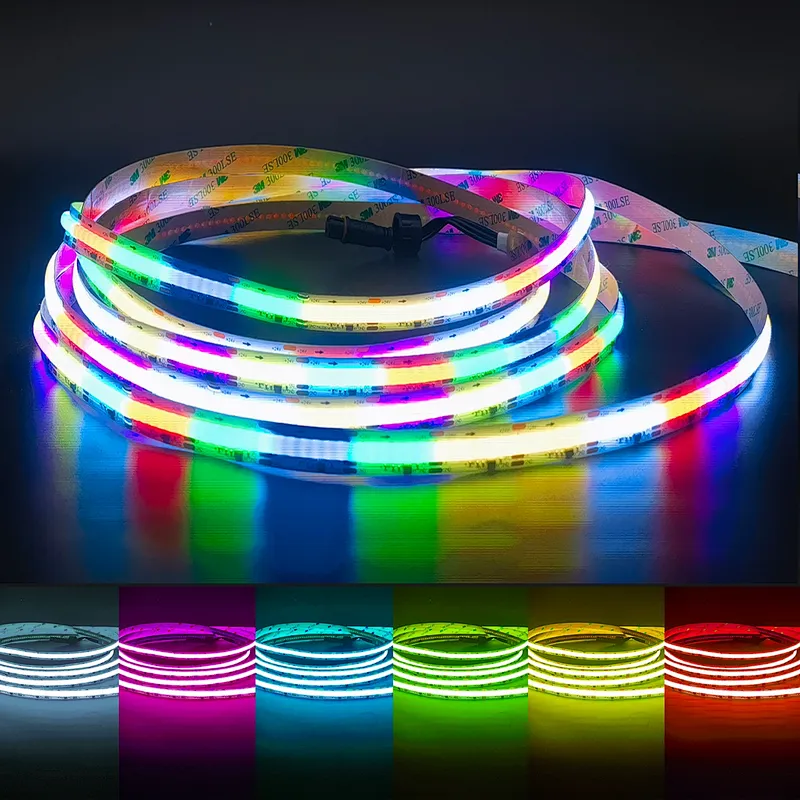

(1) APP Intelligent Control+RGB full-color color change:

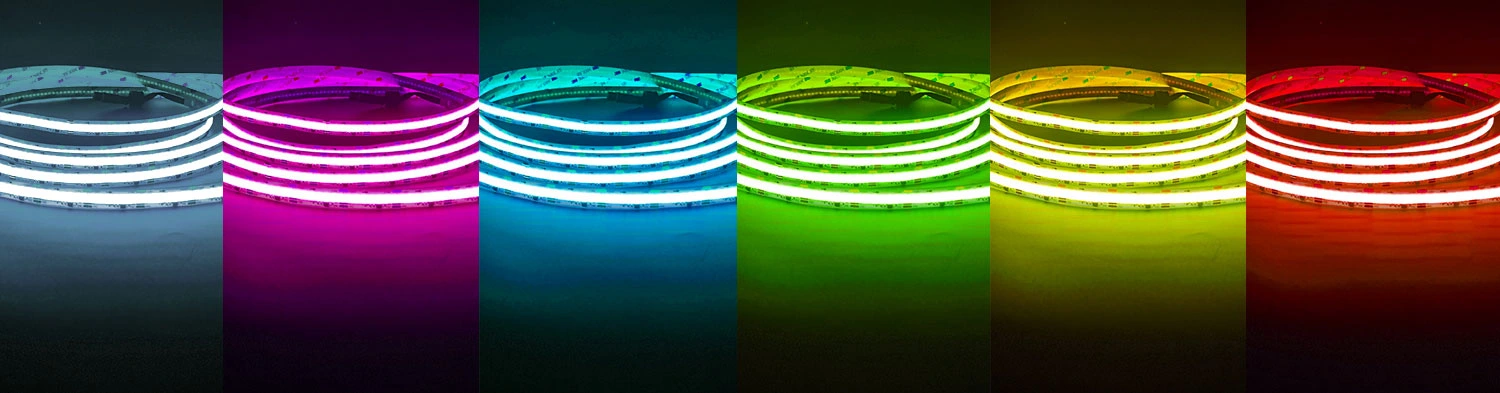

Realize COB RGB LED strip light 16 million colors adjustment through self-developed APP (compatible with iOS/Android), support mobile phone/tablet remote adjustment of RGB color, brightness, dynamic modes (e.g. gradient, breathing), dynamic scene modes (e.g. party, festival lighting), compatible with mainstream smart home platforms (e.g. Amazon Alexa, Google Home).

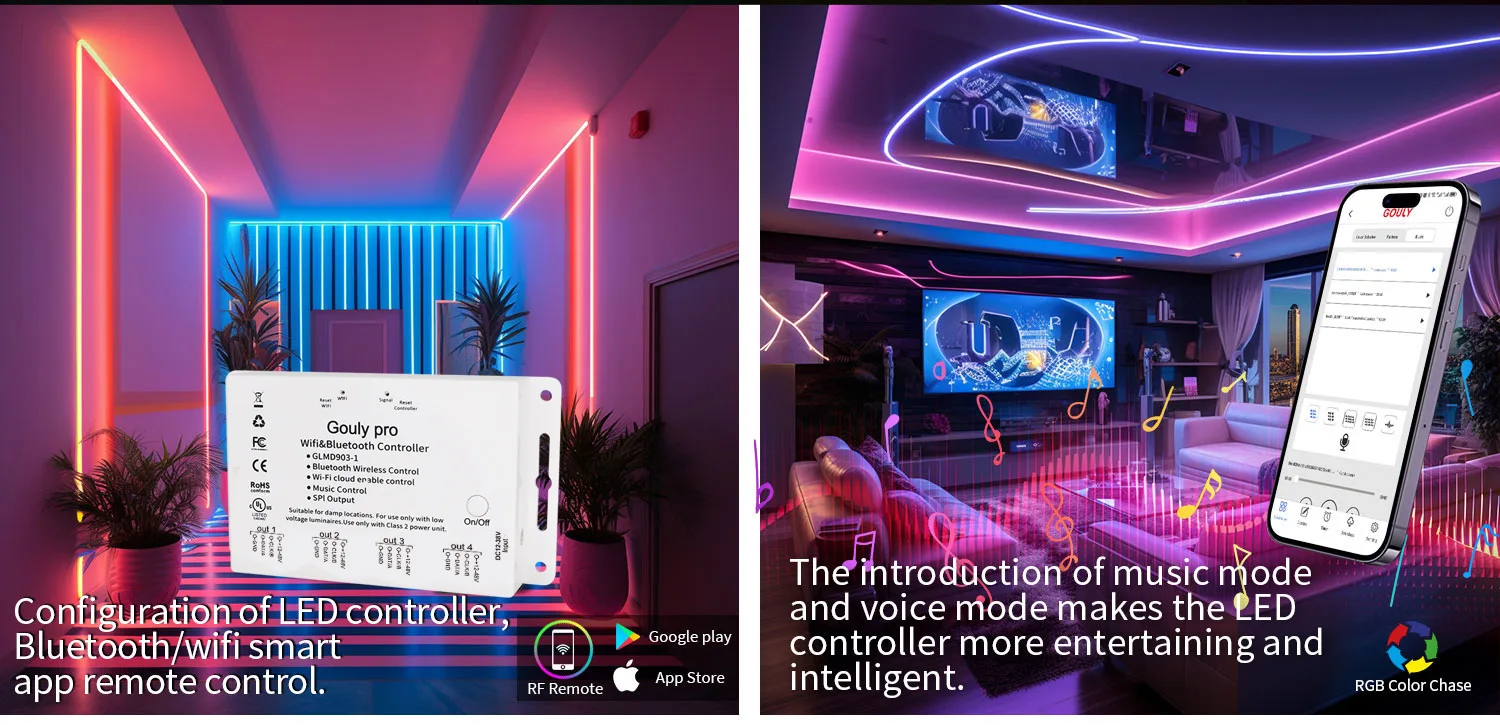

(2) Self-developed controller:

Provide standard controllers, strong anti-jamming ability, compatible with DMX512 protocol, and can provide OEM/ODMservices.

cob rgb led strip light

2.FlexibleInstallation

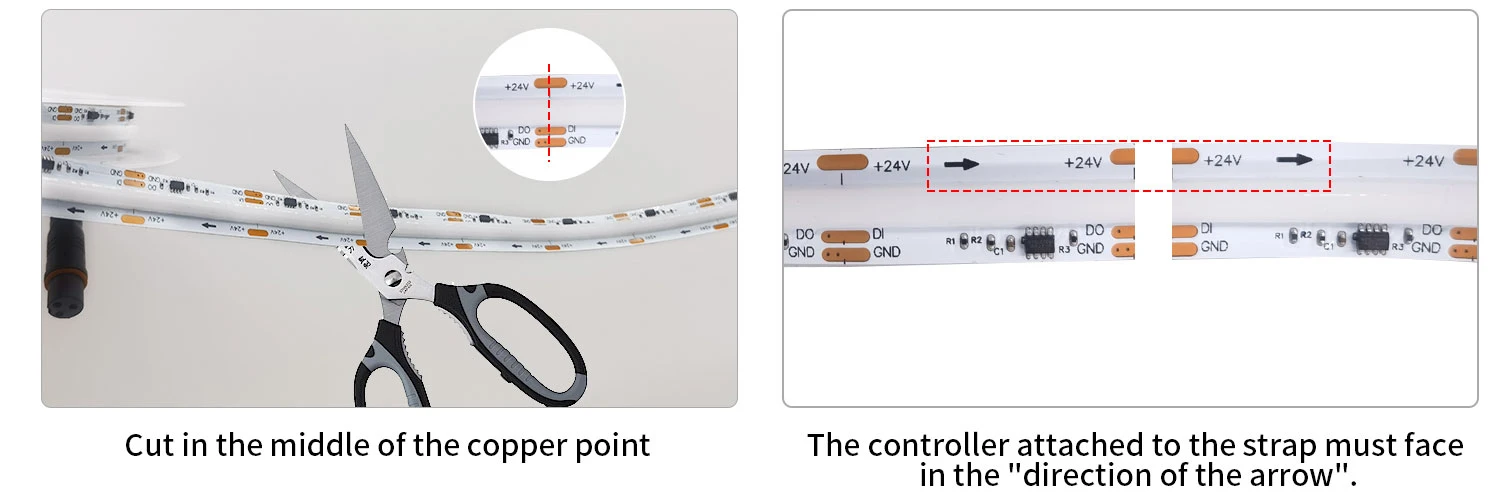

(1) Cuttable copper pointdesign:

Every 50mm a precision cutting point, COB RGB LED strip light supports free cutting and splicing, perfectly adapted to the user's DIY needs.

(2) 3M high strength adhesive backing:

Tear and stick, firmly adheres to a variety of surfaces (wood, metal, tile).

rgb cob led light strip

3.ProfessionalLevelCustomization

(1) Three LED densities available :

672pcs/m:basic brightness, cost-effective choice, suitable for ambient lighting.

720pcs/m:balanced brightness and energy consumption, suitable for mainstream commercial lighting.

840pcs/m:high-density spot, no particles, to meet the showroom and other high-demand scenarios.

(2) Multi-protection level available:

IP20:Indoor dry environment, such as cabinets, display cases.

IP67:dustproof and waterproof, suitable for bathrooms, outdoor eaves.

IP68:fully sealed waterproof, can be briefly submerged, suitable for swimming pools.

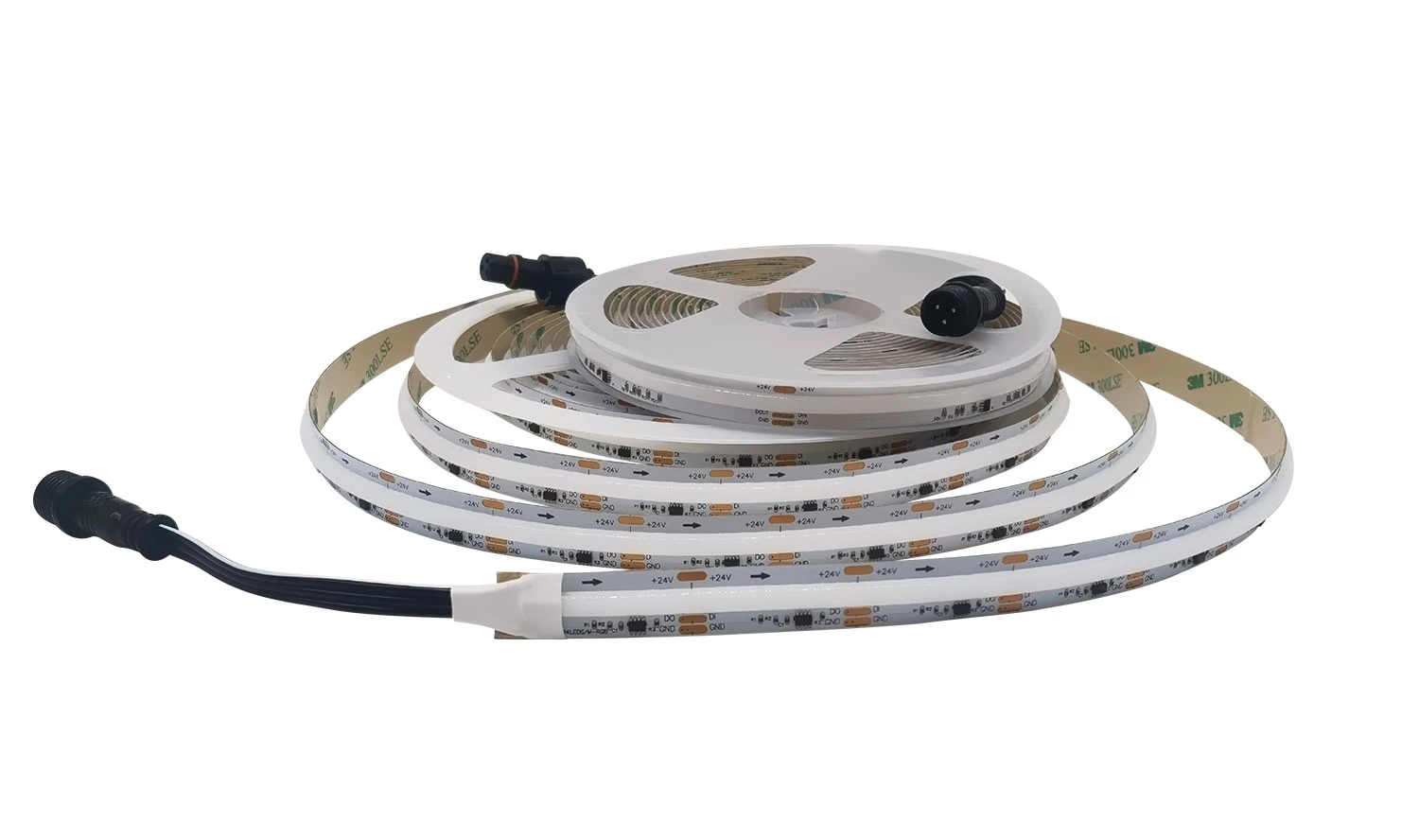

rgb led cob strip

4.SafeAndDurable

(1) 24V low voltage DC power supply:

Meets European and American electrical safety standards, avoiding high voltage risks.

(2) Flexible silicone encapsulation:

Waterproof, UV resistance, bending resistance, high and low temperature resistance (-40°C~60°C), adapt to changing climate, outdoor use without yellowing or cracking.

(3) 50,000+hourslifespan:

Can be used continuously for more than 10 years, reducing maintenance costs.

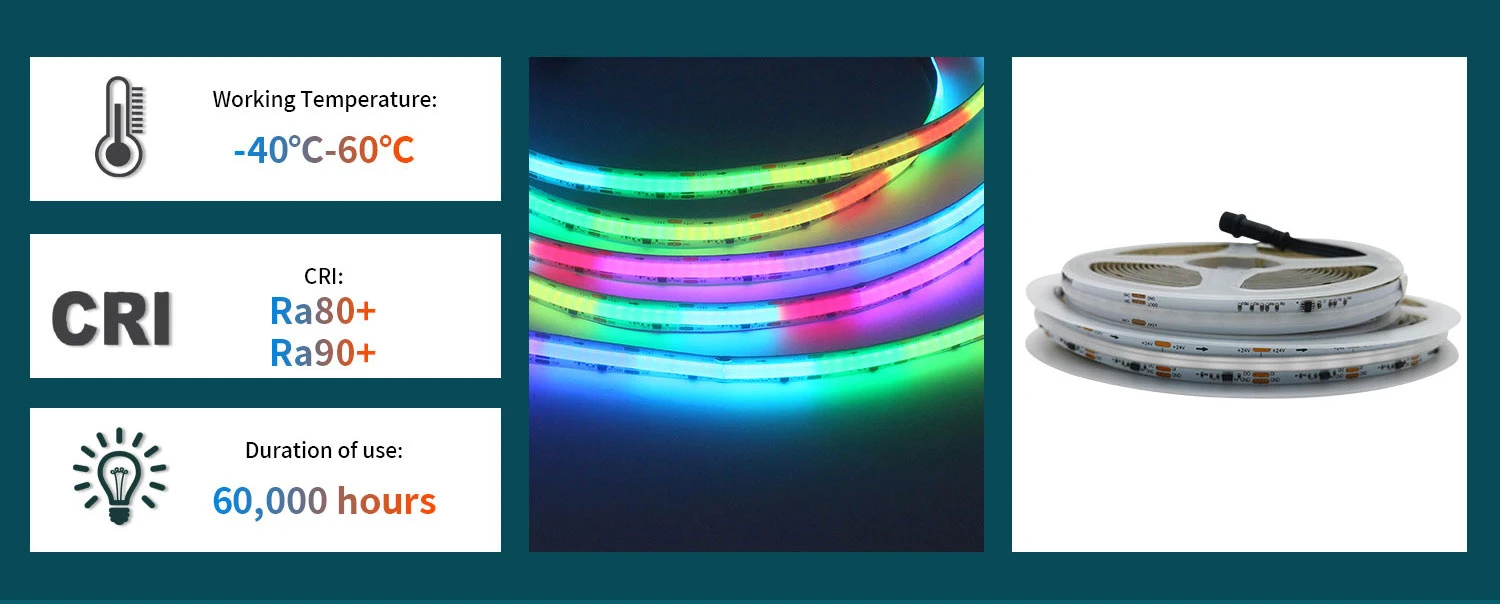

led cob strip rgb

5.WideApplicationOf COB RGB LEDStripLight

(1) 180 ° ultra-wide light-emitting angle + RA ≥ 90 high color rendering:

Uniform illumination without dark areas, restore the true color of the object, COB RGB LED strip light to meet the stringent requirements for light quality in high-end retail, gallery, home scenes in Europe and the United States.

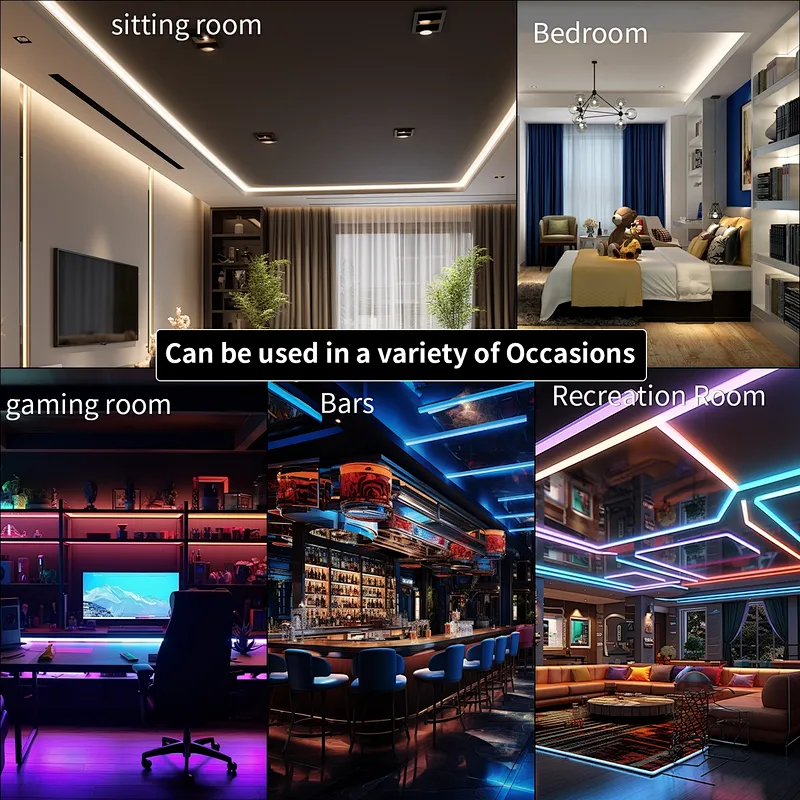

(2) Typical application scenarios of COB RGB LED strip light:

1.Commercial field: shopping mall window lighting, hotel ambient lighting.

2.Home decoration: TV background wall, staircase light strip.

3.Outdoor projects: building outline lighting, advertising signs.

led cob rgb 24v led strip cob

6.QualityCertificationAndService

(1) COB RGB LED strip light passes CE, UL, and meets RoHS environmental requirements.

(2) 3 years long warranty, provide technical response and after-sales support.

7.Installation Precautions for COB RGB LED Strip Light

(1) Cutting and splicing specifications:

1.Precise cutting: Only use sharp scissors to cut at the marked copper base cutting point, avoid pulling or cutting diagonally resulting in circuit damage.

2.Splice connection: The COB RGB LED strip light should be connected with waterproof butt joints/solder to connect the break points after cutting, the bare wires should be insulated (such as heat shrinkable tube package), and waterproof adhesive should be coated at the joints of IP67/IP68 rated the COB RGB LED strip light to prevent short-circuiting.

3.Length limitation: single COB RGB LED strip light is recommended to be no more than 5 meters (to avoid the voltage drop caused by the end of the brightness attenuation), long-distance installation needs to be segmented power supply.

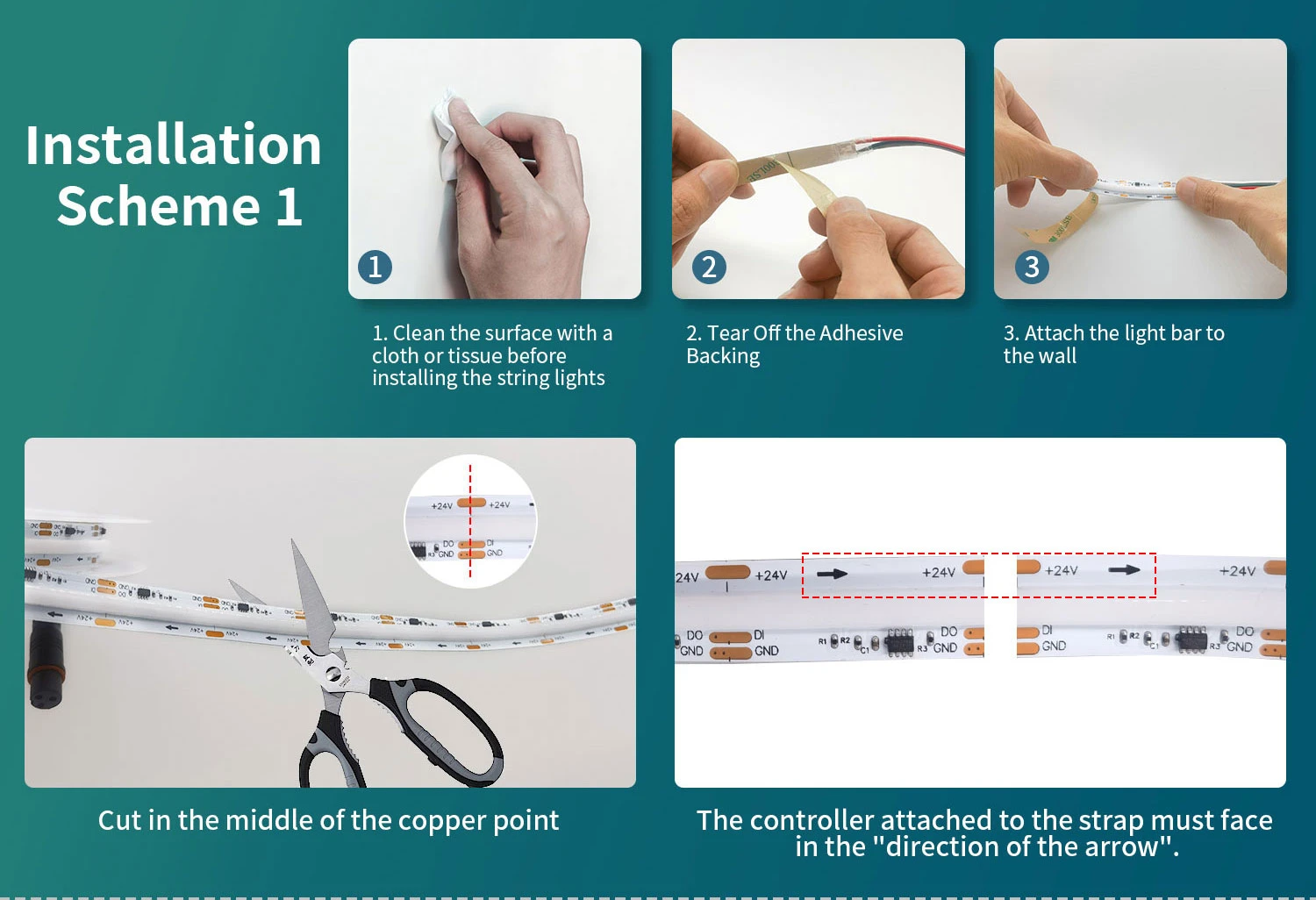

(2) Installation treatment:

1.Wipe the installation surface with alcohol before pasting the COB RGB LED strip light to ensure that there is no oil, dust, and enhance the adhesion of 3M adhesive backing.

2.COB RGB LED strip light can be bent, but the bending radius should be ≥ 3cm, to avoid cracking of the silicone layer or internal line breakage.

3.Outdoor or vibration environment is recommended to use additional clips/ties to fix the COB RGB LED strip light to prevent the adhesive backing from aging off.

rgb cob led strips

(3) Environmental adaptability requirements:

1.Temperature preheating:When installing in an environment lower than -20℃, power on for 5 minutes to warm up the COB RGB LED strip light to avoid silicone embrittlement leading to bending and rupture.

2.Heat dissipation avoidance: Avoid COB RGB LED strip light long time covered with shade (such as carpet, sealed cabinet), high temperature environment need to reduce the brightness or increase the heat dissipation channel.

3.Protection level matching:

IP20:Indoor dry area only, avoid kitchen fumes, bathroom water spray.

IP67/IP68: Avoid strong direct water flow (such as fountain) when installing COB RGB LED strip light outdoors, and check the aging condition of sealing tape regularly.

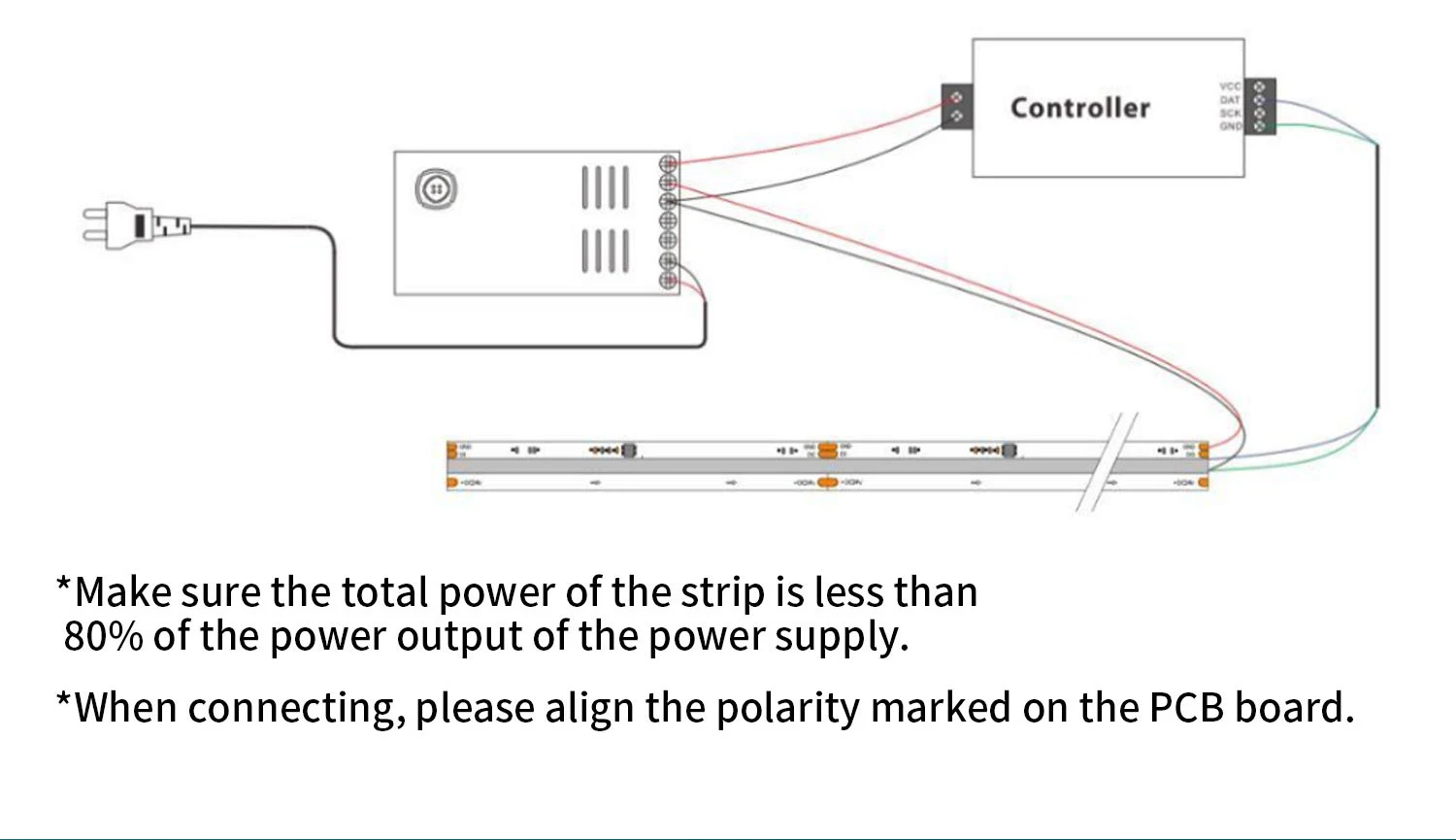

(4) Power on test and maintenance:

1.DC24V regulated power supply must be used, over-voltage or reverse wiring is prohibited.

2.Before installing for long distance, check the brightness consistency and controller response by energizing each segment.

3.Be sure to disconnect the power supply when installing, cutting or servicing the COB RGB LED strip light to prevent electric shock or burned circuits.

4.Check the adhesive backing of the COB RGB LED strip light and the waterproofness of the interface every half a year. Outdoor strips are recommended to clean the surface dust to ensure heat dissipation.
